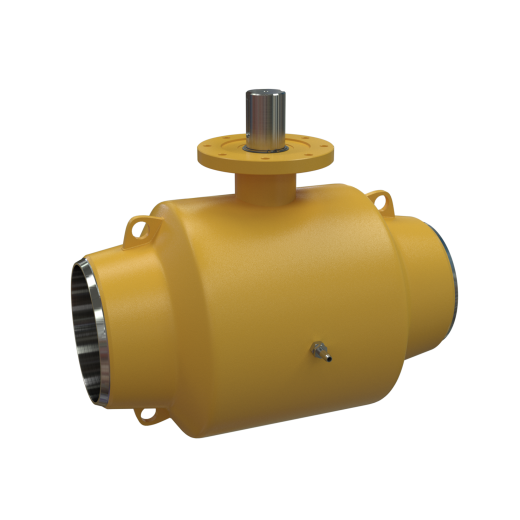

UGRESHA high-pressure ball valve full-bore, DN65 PN 6,3-16 MPa
| Working medium | natural gas |
| t⁰C working medium | up to ≈+100⁰С |
| Tightness class | A, as per GOST 9544-2015 |
| Specification |
| Stem | Steel 20Х13, steel 40Х |
| Sealing rings | Pentasil-1627, Pentasil-1629, EPDM (ethylene propylene rubber) |
| Body, neck | Steel 20ГЛ |
| Branch pipe | Steel 20ГЛ |
| Stopper | Steel 09Г2С |
| Seat | PEEK (polyetheretherketone) |
| Spring twisted | Steel spring 60С2А |
Overall and connection dimensions *
- РN, кгс/см263100160
- DN656565
- ОбозначениеNEON 65.2.4.1NEON 65.2.5.1NEON 65.2.6.1
- D1,mm189189189
- D2,mm767676
- D3,mmF10F10F10
- L,mm330330330
- H,mm125125125
- h,mm.404040
ADVANTAGES
- Most practical for the natural gas pipelines under pressure of 16 MPa and working medium temperature up to +100ºC
- Reliable for operation at the critical sectors of the pipeline
- Complete tightness as per class A to shut off the medium flow
- Up-to-date design of the heavy-duty flanged rubberized wedge gate valve made for the harsh conditions of operation in Russia
- Competitive price from the Manufacturer
- Easy to install, operate, maintain and repair
- Reliable and robust design
SERVICES (Included)
- Installation and adjustment of actuators
- Standard guarantee
EXTRA SERVICES
- On-site inspection and maintenance of the valves by the UZTPA specialists
- Installation of the customer’s actuators on the UZTPA valves
- Elongated stem for underground installation
- Enhanced coating
- Welding of adapter rings
- Polyethylene branch pipes
- Products delivery to the customer warehousing facilities
- Training of the customers specialists
